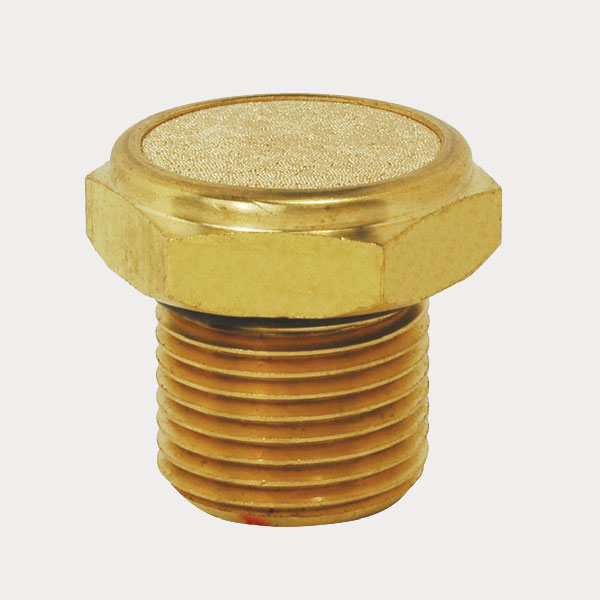

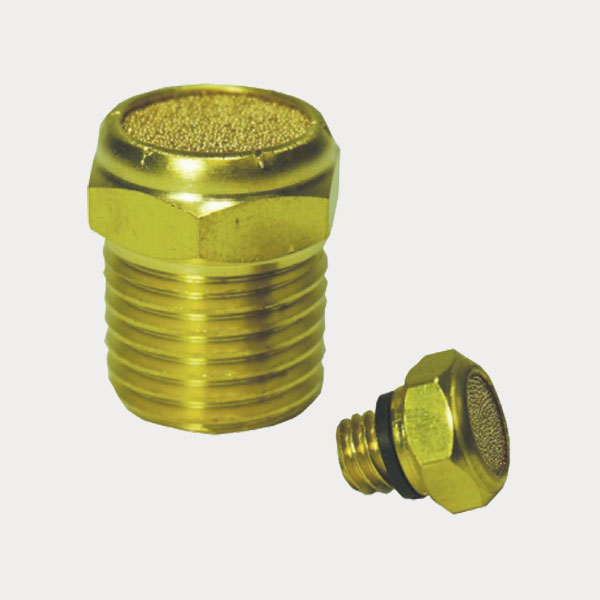

BV/BVS Series – Breather Vent
SPECIFICATIONS
| Model |
BV-08* |
BV-16 |
BV-18 |
BV-28 |
BV-38 |
BV-48 |
BV-68 |
BV-88 |
| Connection (NPTM) |
10-32UNF |
1/16” |
1/8” |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
| Overall Length (IN.) |
11/32” |
13/32” |
1/2” |
11/16” |
27/32” |
31/32” |
1-7/64” |
1-11/32” |
| Hex (IN.) |
5/16” |
3/8” |
7/16” |
9/16” |
11/16” |
7/8” |
1-9/64” |
1-11/32” |
| Body Material |
Brass |
Brass |
Brass |
Brass |
Brass |
Brass |
Brass |
Brass |
| Element Material |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
Sintered Bronze (40 micron standard, 10 or 90 micron available) |
| Max Operating Pressure |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
150 Psi (10.55 kg/cm²) |
| Max Operating Pressure |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
| Operating Temperature |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
| Weight(Approx.) (OZ.) |
0.07 |
0.12 |
0.19 |
0.39 |
0.70 |
1.17 |
1.84 |
3.31 |
| Unit Pack (EA.) |
10 |
10 |
10 |
10 |
10 |
10 |
5 |
1 |
BV-SAE#
SPECIFICATIONS
| Model |
BV-SAE#4 |
BV-SAE#6 |
BV-SAE#8 |
BV-SAE#10 |
BV-SAE#12 |
| Connection (SAE) |
7/16”-20 |
9/16”-18 |
3/4”-16 |
7/8”-14 |
1-1/16”-12 |
| Overall Length (IN.) |
47/64” |
53/64” |
15/16” |
1-11/64” |
1-11/32” |
| Hex (IN.) |
9/16” |
11/16” |
7/8” |
1-11/64” |
1-11/32” |
| Body Material |
Brass |
Brass |
Brass |
Brass |
Brass |
| Element Material |
Sintered Bronze (70 micron) |
Sintered Bronze (70 micron) |
Sintered Bronze (70 micron) |
Sintered Bronze (70 micron) |
Sintered Bronze (70 micron) |
| Max Operating Pressure |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
150 psi (10.55 kg/cm²) |
| Operating Temperature |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
35~300℉ (1.6~149℃) |
| Weight (OZ.) |
0.42 |
0.71 |
1.18 |
2.30 |
3.90 |
| Unit Pack (EA.) |
50 |
50 |
50 |
50 |
50 |
